SWO

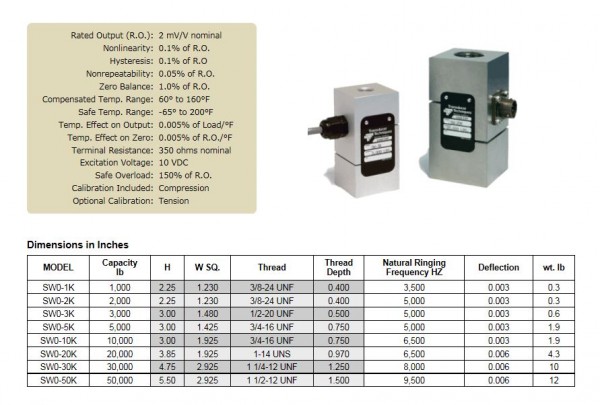

Web site : https://www.transducertechniques.com/ FEATURES We designed the SW0 Series Load Cell as an economical solution for applications that require force measurement or load feedback in both tension and compression with good output (millivolt) compliance. When applied as an in line load link or base mounted, the SW0 Series offers good side load rejection. Ranges from 1,000 lb through 3,000 lb are anodized aluminum and ranges 5,000 lb through 50,000 lb are made from 17-4ph heat treated stainless steel. The sensing element incorporates bonded foil strain gages of the highest quality and are sealed for protection against most industrial Environments. |
|||||
|
|
|||||
