토크센서

계측센서 토크센서
HITEC | 01100
작성자 관리자

＊ 주요정보

Maker
HITEC
Model
01100
Range
100 - 20,000 in.lb
Output
mV/V
PDF
Description

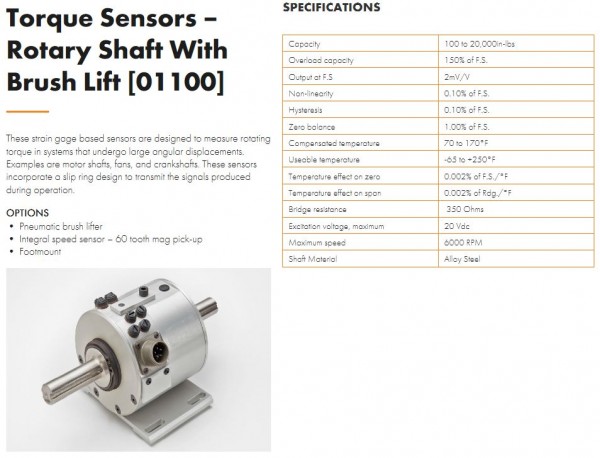

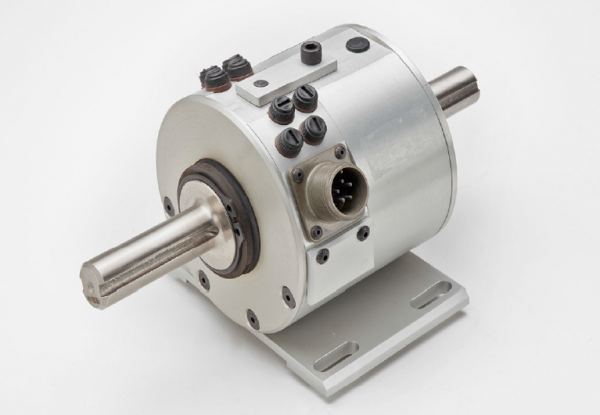

Torque Sensors – Rotary Shaft with Brush Lift

＊ 추가설명

01100

Web site : https://www.hitecsensors.com/

FEATURES
These strain gage based sensors are designed to measure rotating torque in systems that undergo large angular displacements. Examples are motor shafts, fans, and crankshafts. These sensors incorporate a slip ring design to transmit the signals produced during operation.

OPTIONS
●  Pneumatic brush lifter
●  Integral speed sensor – 60 tooth mag pick-up
●  Footmount
