토크센서

계측센서 토크센서
HITEC | 01324
작성자 관리자

＊ 주요정보

Maker
HITEC
Model
01324
Range
50 in.oz. - 20,000 in.lb.
Output
mV/V
PDF
Description

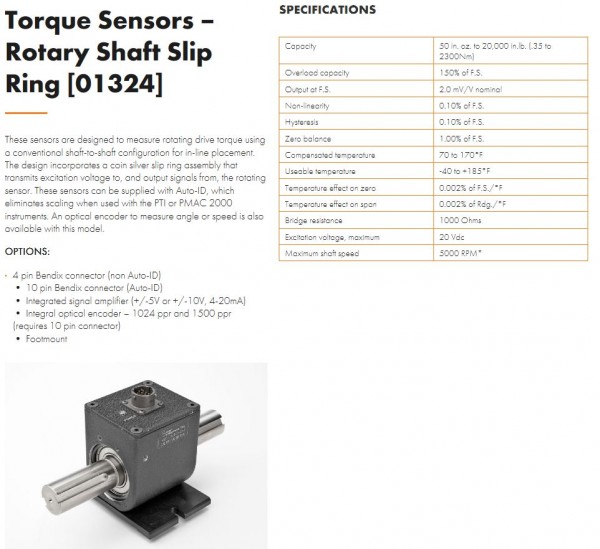

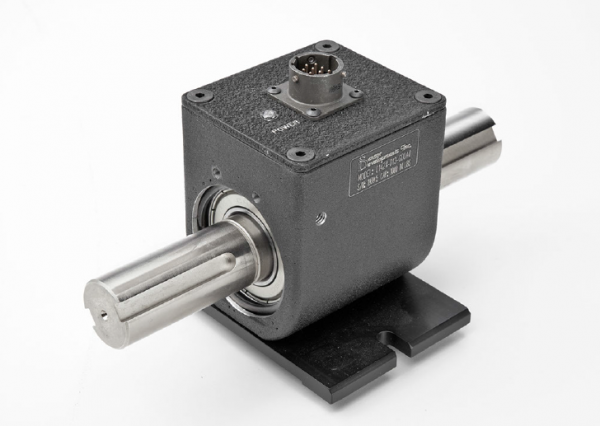

Torque Sensors – Rotary Shaft Slip Ring

＊ 추가설명

01324

Web site : https://www.hitecsensors.com/

FEATURES
These sensors are designed to measure rotating drive torque using a conventional shaft-to-shaft configuration for in-line placement. The design incorporates a coin silver slip ring assembly that transmits excitation voltage to, and output signals from, the rotating sensor. These sensors can be supplied with Auto-ID, which eliminates scaling when used with the PTI or PMAC 2000 instruments. An optical encoder to measure angle or speed is also available with this model.

OPTIONS:
●  4 pin Bendix connector (non Auto-ID)
●  10 pin Bendix connector (Auto-ID)
●  Integrated signal amplifier (+/-5V or +/-10V, 4-20mA)
●  Integral optical encoder – 1024 ppr and 1500 ppr (requires 10 pin connector)
●  Footmount
