포텐쇼미터

계측센서 포텐쇼미터
NOVOTECHNIK | TEX RETURN SPRING
작성자 관리자

＊ 주요정보

Maker
NOVOTECHNIK
Model
TEX RETURN SPRING
Range
up to 200 mm
Output
Potentiometric (Max 42VDC)
PDF
Description

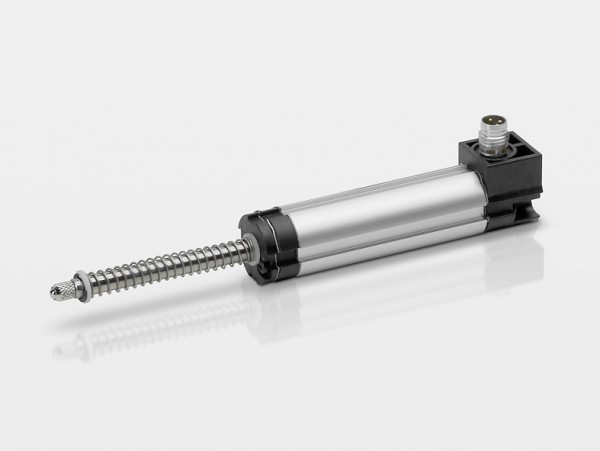

Position Transducer with return spring potentiometric

＊ 추가설명

TEX RETURN SPRING

Web site : https://www.novotechnik.de/

features
●    Position transducer with return spring
●    outstanding linearity up to ±0.05 %
●    resolution better than 0.01 mm
●    very long life - up to 50 million movements (application dependent)
●    compact dimensions
●    protection class IP54
●    threaded shaft allows customer-defined mechanical interfaces
●    compatible to standard pro- be tips
●    cable or connector versions available
