NOVOTECHNIK | TX2 PIVOT
작성자 관리자

＊ 주요정보

Maker
NOVOTECHNIK
Model
TX2 PIVOT
Range
up to 300 mm
Output
Potentiometric (Max 42VDC)
PDF
Description
Position Transducers Pivot head Mounting potentiometric

＊ 추가설명

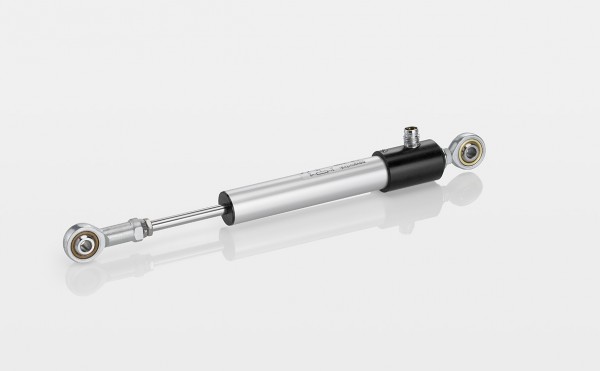

TX2 PIVOT

Web site : https://www.novotechnik.de/

features
●    compact dimensions Ø 16 mm
●    protection class IP67
●    easy to assemble via low- backlash pivot heads with a large angle of freedom (up to ±12,5°)
●    very long life (depending on application) up to 50 million movements
●    resolution better than 0.01 mm
●    outstanding linearity up to ±0.05 %
●    suitable for harsh environ- mental conditions (humidity, oil, dust)
●    cable or plug connection optional
